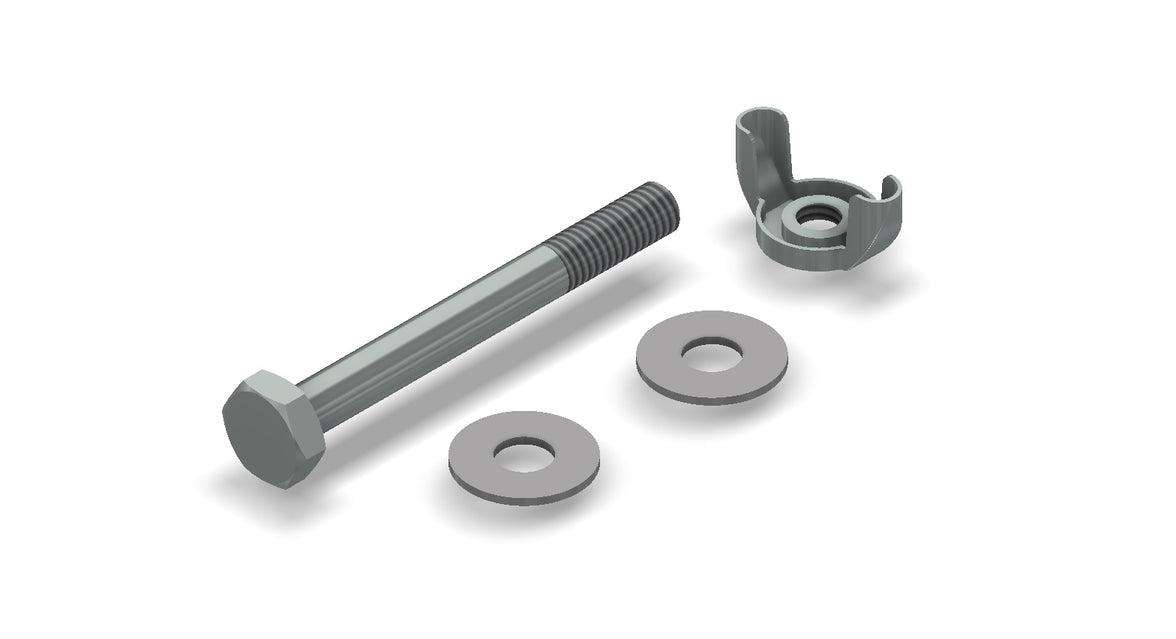

Amerex 11970 Hardware Bag Assembly, Wheeled Unit
Amerex 11970 is the Bolt, Washer and Wing Nut listed as item 20 on printed page 18 (PDF page 20) of Amerex Parts Book 27277 Rev D, directly after the 04072 nitrogen cylinder retaining strap, for 125/150 lb dry chemical wheeled models 450 (125 lb ABC) and 452 (125 lb Purple K). Full overview ↓
- UPS-calculated at checkout. Free shipping on orders over $100.
- Returns per our refund policy.
Genuine Amerex part from an authorized Amerex distributor. Not a generic substitute.
Ordering parts for a service route?
Quotes for part lists, PO and tax-exempt orders, and parts not yet listed.
Which models does the Amerex 11970 fit?
Per the Amerex Parts Book · page 20| Fits | Extinguisher | UL rating | Capacity | Price | Link |
|---|---|---|---|---|---|
| Model 450 |  11483 Amerex 450 125 lb Wheeled ABC Fire ExtinguisherParts Book p.18 |
30A:240B:C | 125 lb (57 kg) | $4,960.00 | View |
| Model 452 |  10643 Amerex 452 125 lb Wheeled Purple K Fire ExtinguisherParts Book p.18 |
320B:C | 125 lb (57 kg) | $6,671.00 | View |
Parts list for 125/150 lb. dry chemical wheeled models, 23 cu. ft. nitrogen cylinder
Fitment per the Amerex Parts Book. Check the part number against your unit’s nameplate before ordering.
What is the Amerex 11970?
Amerex 11970 is the Bolt, Washer and Wing Nut listed as item 20 on printed page 18 (PDF page 20) of Amerex Parts Book 27277 Rev D, directly after the 04072 nitrogen cylinder retaining strap, for 125/150 lb dry chemical wheeled models 450 (125 lb ABC) and 452 (125 lb Purple K). Manual 05605's recharge procedure has the technician detach the hose from the nitrogen cylinder, install the shipping cap, unscrew the wing nuts and remove the nitrogen cylinder from the extinguisher, so this hardware comes undone every time the cylinder is changed. The 300/350 lb wheeled models use a different set, 16483. Amerex states that its replacement parts must be used to protect the UL listing and keep the warranty in effect, and that substitute parts void both the Amerex extinguisher warranty and the UL listing.
Amerex 11970 specifications
| Part number | 11970 |
|---|---|
| Description | Bolt, Washer and Wing Nut |
| Parts Book page | Printed page 18 (PDF page 20) |
| Diagram item | 20 |
| Models | 450, 452 |
|---|
| Amerex item number | 11970 |
|---|
Part data as published by Amerex. Confirm against the current Parts Book revision before ordering for a unit in service.
Amerex 11970 documents
Official Amerex publications · PDFCurrent Amerex publications, hosted on ShopAmerex so links do not break when Amerex reorganizes its site.
Other parts on Parts Book page 20
Parts list for 125/150 lb. dry chemical wheeled models, 23 cu. ft. nitrogen cylinder · All 11 parts| Part no. | Part | Pack | Price | Quantity and add to cart |
|---|---|---|---|---|
| 03784 | 1 (sold individually) | $126.00 | ||
| 03785 | 1 (sold individually) | $151.00 | ||
| 03787-P001 | Pack of 1 | $200.00 | ||
| 03817 | Each | $1,188.00 | ||
| 03818 | 1 (sold individually) | $156.00 | ||
| 04072 | 1 (sold individually) | $30.99 | ||
| 06467 | 1 (sold individually) | $191.00 | ||
| 13956 | 1 (sold individually) | $4.99 |
Item numbers refer to the exploded view on the Parts Book page. Model-specific items are marked in the Amerex parts list; confirm before ordering.
Amerex 11970 questions
What does the Amerex 11970 hardware set fit?
Amerex 125/150 lb nitrogen cylinder wheeled dry chemical models 450 (125 lb ABC) and 452 (125 lb Purple K).
What is in the Amerex 11970?
A bolt, washer and wing nut — the Parts Book description for item 20 on that parts list.
What is this hardware used for?
Manual 05605's recharge procedure has the technician unscrew the wing nuts to remove the nitrogen cylinder from the extinguisher, after detaching the hose and installing the shipping cap.
Where is part 11970 in the Amerex Parts Book?
Item 20 on printed page 18 (PDF page 20) of Parts Book 27277 Rev D.
Does the same hardware fit the 300 lb wheeled models 491 and 493?
No. The Parts Book lists 16483 as the bolt, washer and wing nut for those models on printed page 19.
Is the Amerex 11970 a genuine Amerex part?
Yes. Amerex's Parts Book notice states that Amerex replacement parts must be used to protect the UL listing and keep the warranty in effect.
