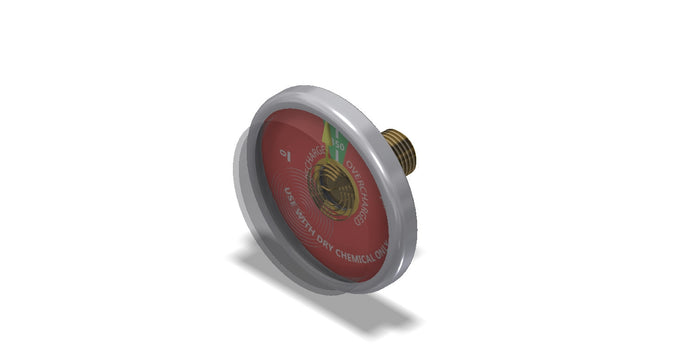

Amerex 08714-P001 Gauge 350 Dry Chemical Brass Valve
Amerex 08714-P001 is the 350 psi pressure gauge for Amerex 125/250 lb dry chemical stored pressure wheeled High Performance and Z-Series extinguishers, models 573, 575, 756 and 758; models 690 and 759 take the 240 psi gauge, part 05225-P. Full overview ↓
- UPS-calculated at checkout. Free shipping on orders over $100.
- Returns per our refund policy.
Genuine Amerex part from an authorized Amerex distributor. Not a generic substitute.
Ordering parts for a service route?
Quotes for part lists, PO and tax-exempt orders, and parts not yet listed.
Which models does the Amerex 08714-P001 fit?
Per the Amerex Parts Book · page 22| Fits | Extinguisher | UL rating | Capacity | Price | Link |
|---|---|---|---|---|---|
| Model 756 |  27061 Amerex 756 250 lb Wheeled ABC Fire ExtinguisherParts Book printed p.20 |
40A:160B:C | 250 lb (113.4 kg) | $11,888.00 | View |
| Model 758 |  27063 Amerex 758 250 lb Wheeled Purple K Fire ExtinguisherParts Book printed p.20 |
160B:C | 250 lb (113.4 kg) | $13,364.00 | View |
Parts list for 125/250 lb. high performance and Z-Series stored pressure wheeled models
Fitment per the Amerex Parts Book. Check the part number against your unit’s nameplate before ordering.
What is the Amerex 08714-P001?
Amerex 08714-P001 is the 350 psi pressure gauge for Amerex 125/250 lb dry chemical stored pressure wheeled High Performance and Z-Series extinguishers, models 573, 575, 756 and 758; models 690 and 759 take the 240 psi gauge, part 05225-P. The gauge threads into the discharge valve and reads the stored nitrogen charge, which should sit in the green zone at 350 psi plus or minus approximately 15 psi. Amerex coats the gauge threads with epoxy at the factory, so removal calls for soaking the valve assembly in 180°F water for two to four minutes and backing the gauge out with a thin 7/16 in. open-end wrench, reinstalling with Teflon tape. It is item 12 on Amerex Parts Book 27277 Rev D, printed page 20 (PDF page 22), sold as a pack of one.
Amerex 08714-P001 specifications
| Part number | 08714-P |
|---|---|
| Description | Gauge - 350 PSI |
| Parts Book page | printed page 20 (PDF page 22) |
| Diagram item | 12 |
| Pack quantity | 1 |
| Models | 573, 575, 756, 758 |
|---|---|
| Alternate part | 05225-P (Gauge - 240 PSI) for models 690 and 759 |
| Normal charged reading | Green zone, 350 psi ± approx. 15 psi |
| Amerex item number | 08714-P001 |
|---|
Part data as published by Amerex. Confirm against the current Parts Book revision before ordering for a unit in service.
Amerex 08714-P001 documents
Official Amerex publications · PDF- Parts Book p. 22 125/250 lb High Performance and Z-Series wheeled parts list — item 12
- Owner's Manual Z-Series High Performance Wheeled Dry Chemical, models 756/757/758/759
- Tech Tip Why Amerex extinguishers require genuine Amerex parts
- Tech Tip Pressure gauges and stored pressure extinguishers
- Warranty Amerex warranty statement
Current Amerex publications, hosted on ShopAmerex so links do not break when Amerex reorganizes its site.
Other parts on Parts Book page 22
Parts list for 125/250 lb. high performance and Z-Series stored pressure wheeled models · All 13 parts| Part no. | Part | Pack | Price | Quantity and add to cart |
|---|---|---|---|---|
| 03559 | Each | $9.99 | ||
| 07309-P001 | Pack of 1 | $13.99 | ||
| 07310-P001 | Pack of 1 | $5.99 | ||
| 08573-P001 | Pack of 1 | $138.00 | ||
| 08715 | Each | $839.00 | ||
| 09399 | Each | $139.00 | ||
| 09856 | Each | $235.00 | ||
| 27075 | Each | $54.99 |
Item numbers refer to the exploded view on the Parts Book page. Model-specific items are marked in the Amerex parts list; confirm before ordering.
Amerex 08714-P001 questions
What does the Amerex 08714-P001 gauge fit?
Amerex 125/250 lb dry chemical stored pressure wheeled High Performance and Z-Series models 573, 575, 756 and 758. Models 690 and 759 use the 240 psi gauge, part 05225-P.
What pressure should this gauge read on a charged unit?
Amerex Owner's Manual 27085 states the pressure should be in the green zone, 350 psi plus or minus approximately 15 psi, on these models.
Can the extinguisher gauge be used to set the charging pressure?
No. Amerex directs technicians to use the regulator gauge to determine when the intended charging pressure has been reached, not the extinguisher gauge.
How is the gauge removed and replaced?
The gauge threads are coated with epoxy at the factory. Amerex says to soak the valve assembly in 180°F water for two to four minutes, remove the gauge with a thin 7/16 in. open-end wrench, and reinstall using Teflon tape on the gauge threads.
Why might the gauge reading vary?
Amerex notes that slight pressure variances in the gauge reading may be found if the extinguisher has been subjected to extremes of heat or cold.
How many gauges come in this listing?
One (Pack of 1).
Where is item 08714-P in the Amerex Parts Book?
Item 12 on printed page 20 (PDF page 22) of Parts Book 27277 Rev D.
Is the Amerex 08714-P001 a genuine Amerex part?
Yes. Amerex states that replacement parts must be Amerex parts to protect the UL listing and keep the warranty in effect, and that substitute parts void both.
