Genuine Amerex service part·Part no. 27087

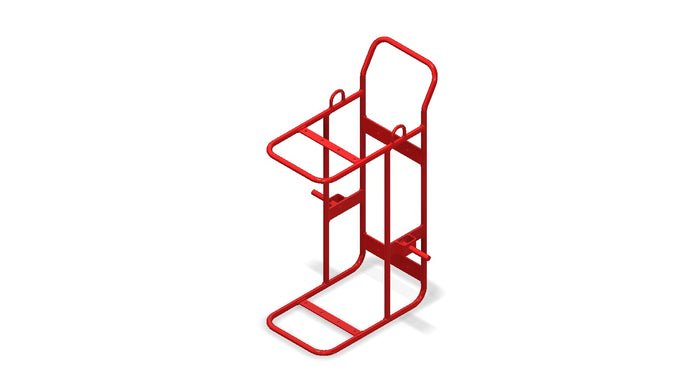

Amerex 27087 Carriage Assembly, 250 ZP Red
Amerex 27087 is the Z-Series carriage assembly, supplied without wheels, for Amerex 250 lb dry chemical stored pressure wheeled High Performance and Z-Series extinguishers, models 573, 575, 756 and 758; the 125 lb models 690 and 759 use carriage 27086. Full overview ↓
- Free shipping (orders over $100)
- Returns per our refund policy.
Genuine Amerex part from an authorized Amerex distributor. Not a generic substitute.
Ordering parts for a service route?
Quotes for part lists, PO and tax-exempt orders, and parts not yet listed.
Which models does the Amerex 27087 fit?
Per the Amerex Parts Book · page 22| Fits | Extinguisher | UL rating | Capacity | Price | Link |
|---|---|---|---|---|---|
| Model 756 |  27061 Amerex 756 250 lb Wheeled ABC Fire ExtinguisherParts Book printed p.20 |
40A:160B:C | 250 lb (113.4 kg) | $11,888.00 | View |
| Model 758 |  27063 Amerex 758 250 lb Wheeled Purple K Fire ExtinguisherParts Book printed p.20 |
160B:C | 250 lb (113.4 kg) | $13,364.00 | View |
Parts list for 125/250 lb. high performance and Z-Series stored pressure wheeled models
Fitment per the Amerex Parts Book. Check the part number against your unit’s nameplate before ordering.
What is the Amerex 27087?
Amerex 27087 is the Z-Series carriage assembly, supplied without wheels, for Amerex 250 lb dry chemical stored pressure wheeled High Performance and Z-Series extinguishers, models 573, 575, 756 and 758; the 125 lb models 690 and 759 use carriage 27086. Amerex's cage type carriage configuration provides protection for the operating valve, cylinder and hose assembly, and lift points built into the carriage frame let the unit be loaded on and off offshore platforms or placed by crane into remote land based installations. Maintenance calls for checking the carriage for loose nuts and bolts, frame distortion, damage and damaged welds. It is item 5 on Amerex Parts Book 27277 Rev D, printed page 20 (PDF page 22).
Amerex 27087 specifications
| Part number | 27087 |
|---|---|
| Description | Carriage Assembly Z-Series without Wheels |
| Parts Book page | printed page 20 (PDF page 22) |
| Diagram item | 5 |
| Wheels included | No |
| Models | 573, 575, 756, 758 |
|---|---|
| Alternate part | 27086 for models 690 and 759 |
| Amerex item number | 27087 |
|---|
Part data as published by Amerex. Confirm against the current Parts Book revision before ordering for a unit in service.
Amerex 27087 documents
Official Amerex publications · PDFCurrent Amerex publications, hosted on ShopAmerex so links do not break when Amerex reorganizes its site.
Other parts on Parts Book page 22
Parts list for 125/250 lb. high performance and Z-Series stored pressure wheeled models · All 13 parts| Part no. | Part | Pack | Price | Quantity and add to cart |
|---|---|---|---|---|
| 03559 | Each | $9.99 | ||
| 07309-P001 | Pack of 1 | $13.99 | ||
| 07310-P001 | Pack of 1 | $5.99 | ||
| 08573-P001 | Pack of 1 | $138.00 | ||
| 08714-P001 | Pack of 1 | $24.99 | ||
| 08715 | Each | $839.00 | ||
| 09399 | Each | $139.00 | ||
| 09856 | Each | $235.00 |
Item numbers refer to the exploded view on the Parts Book page. Model-specific items are marked in the Amerex parts list; confirm before ordering.
Amerex 27087 questions
What does the Amerex 27087 carriage assembly fit?
Amerex 250 lb dry chemical stored pressure wheeled High Performance and Z-Series models 573, 575, 756 and 758.
Can the 27087 carriage be used on model 759?
No. Model 759, along with 690, uses the smaller 125 lb carriage assembly, part 27086.
Does the Amerex 27087 include wheels?
No. The Parts Book lists it as a carriage assembly without wheels; the wheel assembly is a separate part.
What does the carriage do?
Amerex's cage type carriage configuration provides protection for the operating valve, cylinder and hose assembly, and lift points in the frame let the unit be loaded on and off offshore platforms or placed by crane into remote land based installations.
Is the carriage covered by the extended warranty?
No. Amerex's Owner's Manual 27085 states that the twelve year extended warranty on these models excludes abuse, hydrotest, carriage, wheels and hose assembly.
What should be checked on the carriage during maintenance?
Amerex directs technicians to check the carriage assembly for loose nuts, bolts, frame distortion or damage, and to check the welds for damage.
Where is item 27087 in the Amerex Parts Book?
Item 5 on printed page 20 (PDF page 22) of Parts Book 27277 Rev D, listed alongside the 125 lb carriage, part 27086.
Is the Amerex 27087 a genuine Amerex part?
Yes. Amerex states that replacement parts must be Amerex parts to protect the UL listing and keep the warranty in effect, and that substitute parts void both.
