Amerex 07484 Pictogram Label, 150 BC (Models 468, 469, 471, 472)

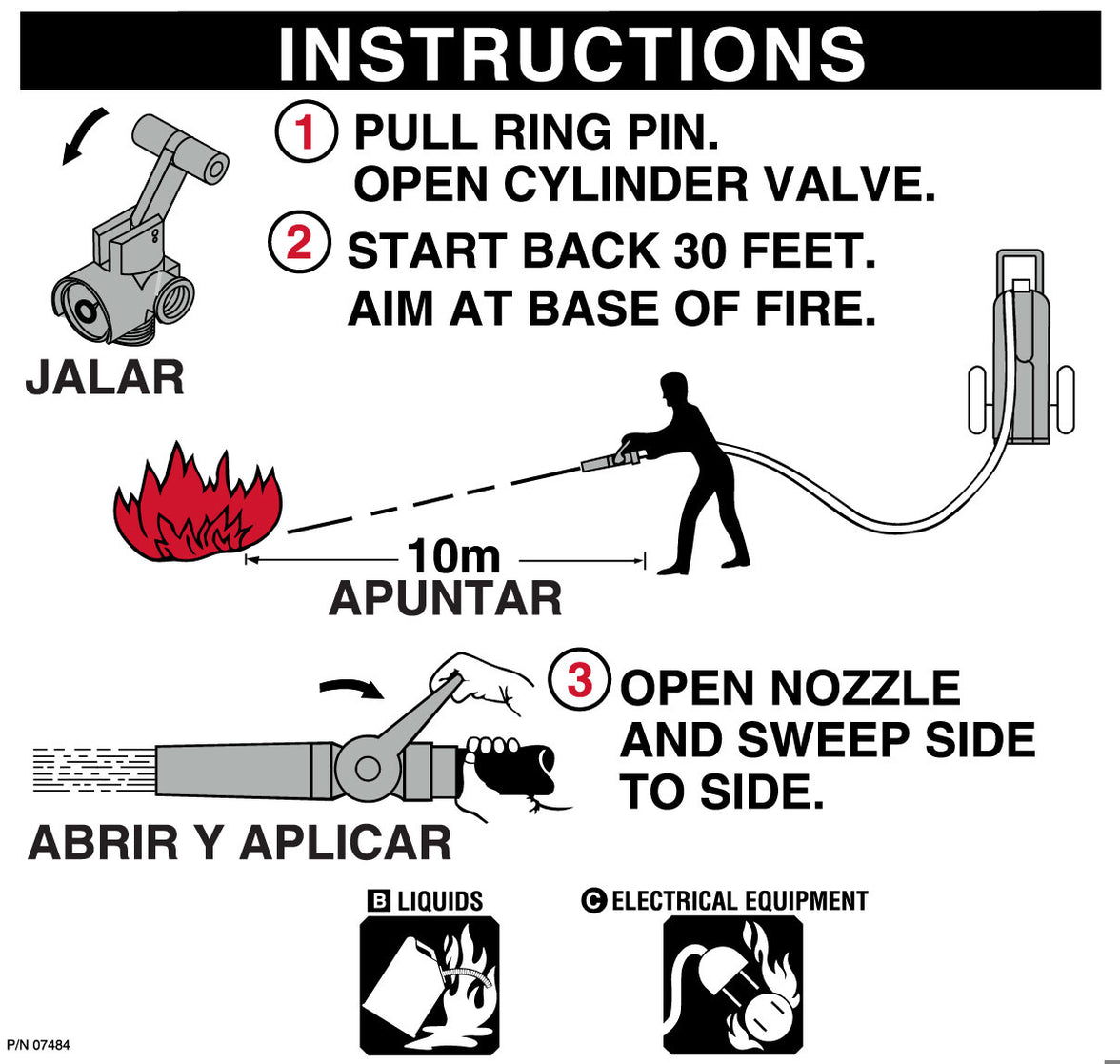

Amerex 07484 is the Purple K pictogram label (Amerex part 07484) that carries the extinguisher's operating instructions. Full overview ↓
- UPS-calculated at checkout. Free shipping on orders over $100.
- Returns per our refund policy.
Genuine Amerex part from an authorized Amerex distributor. Not a generic substitute.
Ordering parts for a service route?
Quotes for part lists, PO and tax-exempt orders, and parts not yet listed.
Which models does the Amerex 07484 fit?
Per the Amerex Parts Book · page 19| Fits | Extinguisher | UL rating | Capacity | Price | Link |
|---|---|---|---|---|---|
| Model 452 |  10643 Amerex 452 125 lb Wheeled Purple K Fire ExtinguisherParts Book p.18 (PDF p.20) |
320B:C | 125 lb (57 kg) | $6,671.00 | View |
| Model 493 |  15505 Amerex 493 300 lb Wheeled Purple K Fire ExtinguisherParts Book p.19 (PDF p.21) |
320B:C | 300 lb (136.07 kg) | $9,413.00 | View |
Parts list for 125/150 lb. dry chemical wheeled models, 110 cu. ft. nitrogen cylinder
Fitment per the Amerex Parts Book. Check the part number against your unit’s nameplate before ordering.
What is the Amerex 07484?
Amerex 07484 is the Purple K pictogram label (Amerex part 07484) that carries the extinguisher's operating instructions. The Parts Book identifies it by model on three wheeled pages: “Pictogram - 469, 472” at item 19 on the 110 cu. ft. page, “Pictogram - 452” at item 21 on the 23 cu. ft. page and “Pictogram - 493” at item 21 on the 55 cu. ft. page. The owner's manual's monthly inspection checks that the operating instructions on the pictogram are facing outward, and annual maintenance checks that it is securely fastened and legible. The Parts Book notice states Amerex replacement parts must be used to protect the UL listing and keep the warranty in effect.
Amerex 07484 specifications
| Part number | 07484 |
|---|---|
| Description | Pictogram - 469, 472 |
| Parts Book page | Printed p.17 (PDF p.19) |
| Diagram item | 19 |
| Pack quantity | 1 |
| Models | 469, 472, 452, 493 |
|---|
| Amerex item number | 07484 |
|---|
Part data as published by Amerex. Confirm against the current Parts Book revision before ordering for a unit in service.
Amerex 07484 documents
Official Amerex publications · PDF- Parts Book p. 19 Parts list for 125/150 lb dry chemical, 110 cu. ft. nitrogen cylinder wheeled models 467, 469, 470, 472
- Owner's Service Manual (05605) Wheeled 125/150 lb N2 cylinder operated - models 450/452/467/469/470/472
- Owner's Service Manual (05614) Wheeled 300/350 lb N2 cylinder operated - models 491/492/493
- Tech Tip - Amerex Products Need Amerex Parts Why genuine Amerex parts
- Amerex Warranty Statement
Current Amerex publications, hosted on ShopAmerex so links do not break when Amerex reorganizes its site.
Other parts on Parts Book page 19
Parts list for 125/150 lb. dry chemical wheeled models, 110 cu. ft. nitrogen cylinder · All 29 parts| Part no. | Part | Pack | Price | Quantity and add to cart |
|---|---|---|---|---|
| 02234 | Pack of 1 | $113.00 | ||
| 02235 | Pack of 1 | $1,152.00 | ||
| 02272-P001 | Pack of 1 | $5.99 | ||
| 04128 | Pack of 1 | $1,606.00 | ||
| 04444 | Pack of 1 | $69.99 | ||
| 04523 | Pack of 1 | $28.99 | ||
| 06032 | Pack of 1 | $88.99 | ||
| 06993 | Pack of 1 | $176.00 |
Item numbers refer to the exploded view on the Parts Book page. Model-specific items are marked in the Amerex parts list; confirm before ordering.
Amerex 07484 questions
What does the Amerex 07484 pictogram fit?
The Purple K wheeled models the Parts Book lists it for: 469 and 472 on the 110 cu. ft. page, 452 on the 23 cu. ft. page and 493 on the 55 cu. ft. page.
Does it also fit models 468 and 471?
The Parts Book does not list either model on any page, and does not associate them with part 07484 - see the note below.
What is checked at monthly inspection?
The owner's manual's monthly quick check includes that the operating instructions on the pictogram are facing outward.
What is checked at annual maintenance?
The manual's annual service step 1 checks that the instruction pictogram and nameplate are securely fastened and legible.
Is there an ABC version?
Yes - Amerex part 07485 is the pictogram listed for the ABC models 467, 470, 450 and 491.
Where is it in the Parts Book?
Item 19 on printed p.17 (PDF p.19) and item 21 on printed p.18 and p.19.
Why use the genuine Amerex part?
The Parts Book notice states the Amerex warranty is voided by generic, off-the-shelf or substitute parts, and that failure to use Amerex replacement parts could cause the extinguisher to malfunction.
