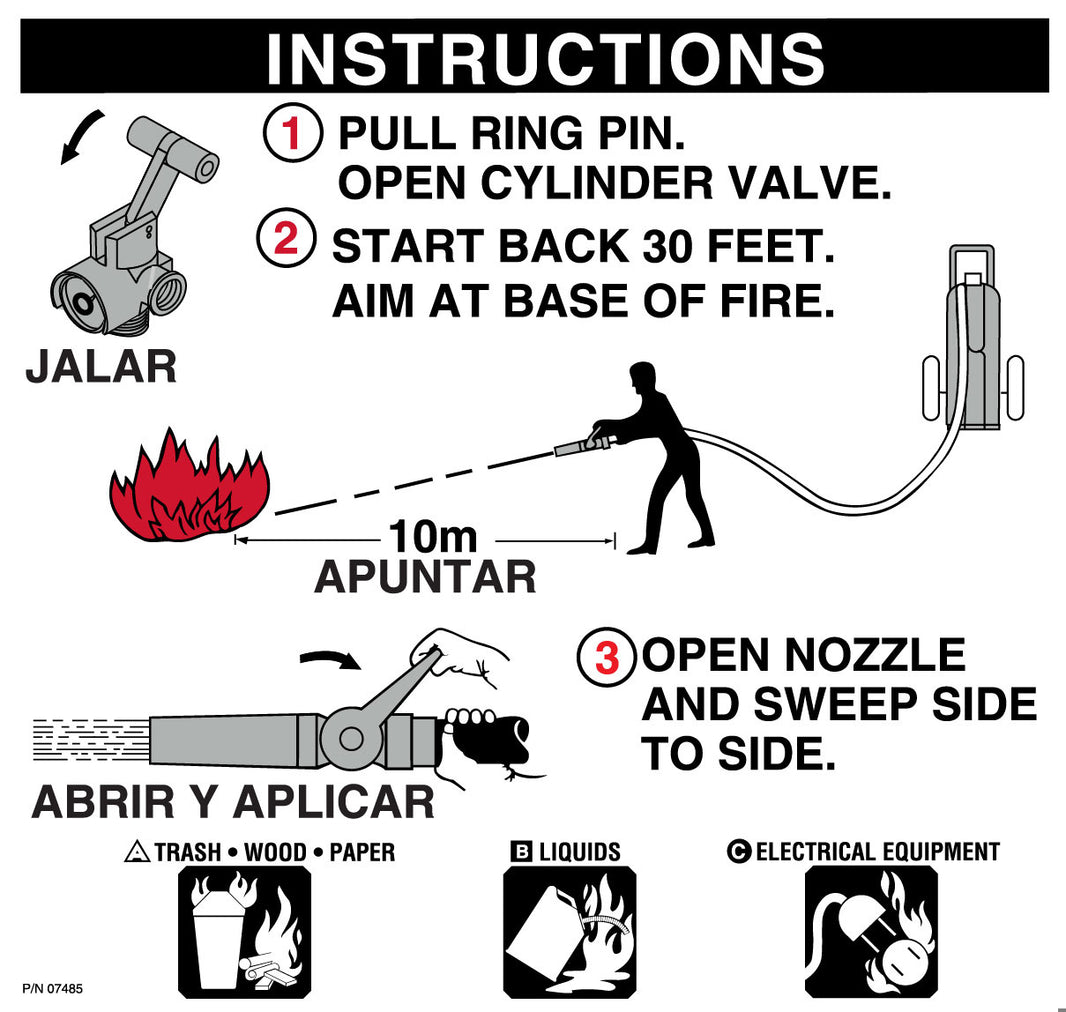

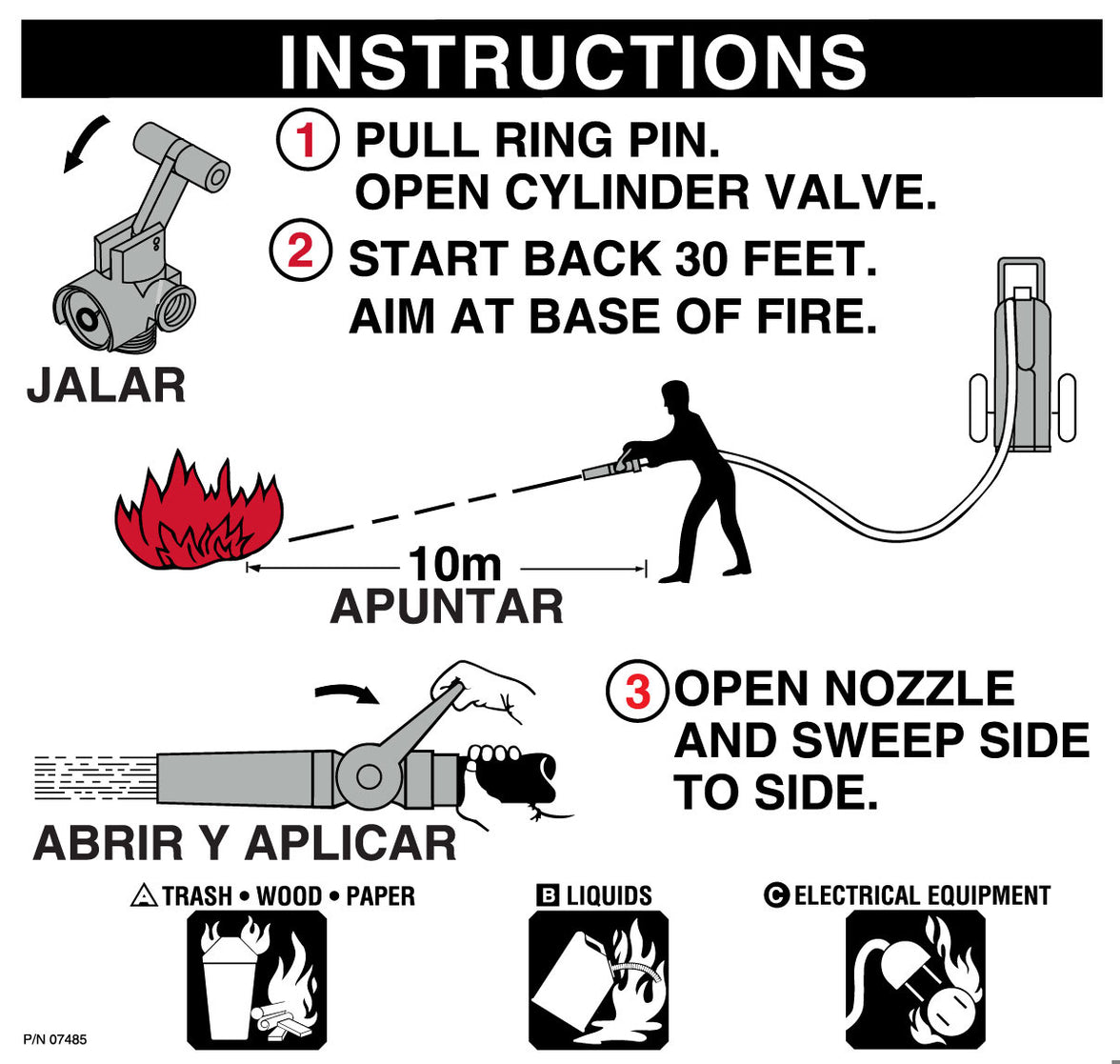

Amerex 07485 Pictogram Label, 150 ABC (Models 467, 470)
Amerex 07485 is the ABC pictogram label (Amerex part 07485) that carries the extinguisher's operating instructions. Full overview ↓
- UPS-calculated at checkout. Free shipping on orders over $100.
- Returns per our refund policy.
Genuine Amerex part from an authorized Amerex distributor. Not a generic substitute.
Ordering parts for a service route?
Quotes for part lists, PO and tax-exempt orders, and parts not yet listed.
Which models does the Amerex 07485 fit?
Per the Amerex Parts Book · page 19| Fits | Extinguisher | UL rating | Capacity | Price | Link |
|---|---|---|---|---|---|
| Model 450 |  11483 Amerex 450 125 lb Wheeled ABC Fire ExtinguisherParts Book p.18 (PDF p.20) |
30A:240B:C | 125 lb (57 kg) | $4,960.00 | View |
| Model 491 |  11677 Amerex 491 300 lb Wheeled ABC Fire ExtinguisherParts Book p.19 (PDF p.21) |
40A:320B:C | 300 lb (136.07 kg) | $9,515.00 | View |
Parts list for 125/150 lb. dry chemical wheeled models, 110 cu. ft. nitrogen cylinder
Fitment per the Amerex Parts Book. Check the part number against your unit’s nameplate before ordering.
What is the Amerex 07485?
Amerex 07485 is the ABC pictogram label (Amerex part 07485) that carries the extinguisher's operating instructions. The Parts Book identifies it by model on three wheeled pages: “Pictogram - 467, 470” at item 19 on the 110 cu. ft. page, “Pictogram - 450” at item 21 on the 23 cu. ft. page and “Pictogram - 491” at item 21 on the 55 cu. ft. page. The owner's manual's monthly inspection checks that the operating instructions on the pictogram are facing outward, and annual maintenance checks that it is securely fastened and legible. The Parts Book notice states Amerex replacement parts must be used to protect the UL listing and keep the warranty in effect.
Amerex 07485 specifications
| Part number | 07485 |
|---|---|
| Description | Pictogram - 467, 470 |
| Parts Book page | Printed p.17 (PDF p.19) |
| Diagram item | 19 |
| Pack quantity | 1 |
| Models | 467, 470, 450, 491 |
|---|
| Amerex item number | 07485 |
|---|
Part data as published by Amerex. Confirm against the current Parts Book revision before ordering for a unit in service.
Amerex 07485 documents
Official Amerex publications · PDF- Parts Book p. 19 Parts list for 125/150 lb dry chemical, 110 cu. ft. nitrogen cylinder wheeled models 467, 469, 470, 472
- Owner's Service Manual (05605) Wheeled 125/150 lb N2 cylinder operated - models 450/452/467/469/470/472
- Owner's Service Manual (05614) Wheeled 300/350 lb N2 cylinder operated - models 491/492/493
- Tech Tip - Amerex Products Need Amerex Parts Why genuine Amerex parts
- Amerex Warranty Statement
Current Amerex publications, hosted on ShopAmerex so links do not break when Amerex reorganizes its site.
Other parts on Parts Book page 19
Parts list for 125/150 lb. dry chemical wheeled models, 110 cu. ft. nitrogen cylinder · All 29 parts| Part no. | Part | Pack | Price | Quantity and add to cart |
|---|---|---|---|---|
| 02234 | Pack of 1 | $113.00 | ||
| 02235 | Pack of 1 | $1,152.00 | ||
| 02272-P001 | Pack of 1 | $5.99 | ||
| 04128 | Pack of 1 | $1,606.00 | ||
| 04444 | Pack of 1 | $69.99 | ||
| 04523 | Pack of 1 | $28.99 | ||
| 06032 | Pack of 1 | $88.99 | ||
| 06993 | Pack of 1 | $176.00 |
Item numbers refer to the exploded view on the Parts Book page. Model-specific items are marked in the Amerex parts list; confirm before ordering.
Amerex 07485 questions
What does the Amerex 07485 pictogram fit?
The ABC wheeled models the Parts Book lists it for: 467 and 470 on the 110 cu. ft. page, 450 on the 23 cu. ft. page and 491 on the 55 cu. ft. page.
Does “150 ABC” describe this label?
Not per the Parts Book, which identifies the label only by model number and prints no weight class for it.
What is checked at monthly inspection?
The owner's manual's monthly quick check includes that the operating instructions on the pictogram are facing outward.
What is checked at annual maintenance?
The manual's annual service step 1 checks that the instruction pictogram and nameplate are securely fastened and legible.
Is there a Purple K version?
Yes - Amerex part 07484 is the pictogram listed for the Purple K models 469, 472, 452 and 493.
Where is it in the Parts Book?
Item 19 on printed p.17 (PDF p.19) and item 21 on printed p.18 and p.19.
Why use the genuine Amerex part?
The Parts Book notice states the Amerex warranty is voided by generic, off-the-shelf or substitute parts, and that failure to use Amerex replacement parts could cause the extinguisher to malfunction.
