Genuine Amerex service part·Part no. 03562-P001

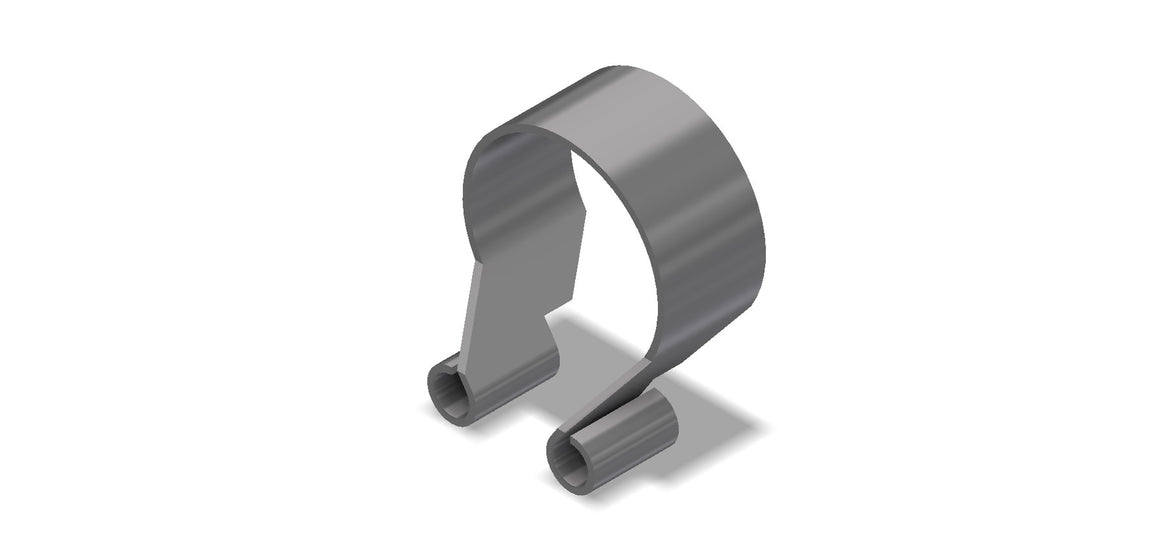

Amerex 03562-P001 Gauge Guard 150
Amerex 03562-P001 is a Gauge Guard (Parts Book item 11) protecting the pressure gauge on the 488 and 490 125 lb wheeled extinguishers (p.16), also listed across the Z-Series 756/758/759 line (p.20) and the 150 lb SF 1230 model 775 (p.26). Full overview ↓
- Part no.
- 03562-P001
- Pack
- 1 (sold individually)
- Fits
- 488, 490, 756 +3 more
- Parts Book
- Page 18
- UPS-calculated at checkout. Free shipping on orders over $100.
- Returns per our refund policy.
Genuine Amerex part from an authorized Amerex distributor. Not a generic substitute.
Ordering parts for a service route?
Quotes for part lists, PO and tax-exempt orders, and parts not yet listed.
Which models does the Amerex 03562-P001 fit?
Per the Amerex Parts Book · page 18| Fits | Extinguisher | UL rating | Capacity | Price | Link |
|---|---|---|---|---|---|
| Model 488 |  10488 Amerex 488 125 lb Wheeled ABC Fire Extinguisher (CG)Parts Book p.16 |
30A:240B:C | 125 lb (56.7 kg) | $5,737.00 | View |
| Model 490 |  10490 Amerex 490 125 lb Wheeled Purple K Fire ExtinguisherParts Book p.16 |
320B:C | 125 lb (56.7 kg) | $6,549.00 | View |
| Model 756 |  27061 Amerex 756 250 lb Wheeled ABC Fire ExtinguisherParts Book p.20 |
40A:160B:C | 250 lb (113.4 kg) | $11,888.00 | View |
| Model 758 |  27063 Amerex 758 250 lb Wheeled Purple K Fire ExtinguisherParts Book p.20 |
160B:C | 250 lb (113.4 kg) | $13,364.00 | View |
| Model 759 |  27065 Amerex 759 125 lb Wheeled Purple K Fire ExtinguisherParts Book p.20 |
120B:C | 125 lb (56.7 kg) | $12,112.00 | View |
| Model 775 |  28325 Amerex 775 150 lb Wheeled SF 1230 Clean Agent Fire ExtinguisherParts Book p.26 |
3A:80B:C | 150 lb | $16,965.00 | View |
Parts list for 125/150 lb. dry chemical stored pressure wheeled models
Fitment per the Amerex Parts Book. Check the part number against your unit’s nameplate before ordering.
What is the Amerex 03562-P001?
Amerex 03562-P001 is a Gauge Guard (Parts Book item 11) protecting the pressure gauge on the 488 and 490 125 lb wheeled extinguishers (p.16), also listed across the Z-Series 756/758/759 line (p.20) and the 150 lb SF 1230 model 775 (p.26). It is a separate, simpler guard item from the 16723 gauge guard bag assembly also listed on the same page. Amerex's owner's manual warns against using solvents near the gauge when cleaning, since they can damage the plastic gauge face. It ships individually. Genuine Amerex parts are required to protect the UL listing and warranty.
Amerex 03562-P001 specifications
| Part number | 03562 |
|---|---|
| Description | Gauge Guard |
| Parts Book page | 16 (PDF p. 18) |
| Diagram item | 11 |
| Pack quantity | 1 (sold individually) |
| Models | 488, 490, 573, 575, 690, 756, 758, 759, 600, B673, B674, B675, 775 |
|---|
| Amerex item number | 03562-P001 |
|---|
Part data as published by Amerex. Confirm against the current Parts Book revision before ordering for a unit in service.
Amerex 03562-P001 documents
Official Amerex publications · PDF- Parts Book p. 18 Gauge Guard — parts list for 125/150 lb stored-pressure wheeled models 488, 490 (printed p.16)
- Parts Book p. 22 Gauge Guard (item 28) on the Z-Series parts list (printed p.20)
- Parts Book p. 28 Gauge Guard (item 25) on the 775 SF 1230 parts list (printed p.26)
- Owner's Manual (488/490)
- Owner's Manual (Z-Series 756/758/759)
- Owner's Manual (775)
- Tech Tip Why genuine Amerex parts
- Warranty
Current Amerex publications, hosted on ShopAmerex so links do not break when Amerex reorganizes its site.
Other parts on Parts Book page 18
Parts list for 125/150 lb. dry chemical stored pressure wheeled models · All 22 parts| Part no. | Part | Pack | Price | Quantity and add to cart |
|---|---|---|---|---|
| 03501 | 1 (sold individually) | $600.00 | ||
| 03556-P006 | 6 per pack | $14.99 | ||
| 03678-P001 | 1 (sold individually) | $505.00 | ||
| 04938 | 1 (sold individually) | $110.00 | ||
| 05067-P001 | 1 (sold individually) | $17.99 | ||
| 05197 | 1 (sold individually) | $671.00 | ||
| 05239-P012 | 12 per pack | $53.99 | ||
| 06059 | 1 (sold individually) | $132.00 |
Item numbers refer to the exploded view on the Parts Book page. Model-specific items are marked in the Amerex parts list; confirm before ordering.
Amerex 03562-P001 questions
What does the Amerex 03562-P001 gauge guard fit?
The 488, 490, 756, 758 and 759 wheeled dry chemical extinguishers (Parts Book pp.16, 20) and the 775 SF 1230 wheeled unit (p.26).
How is this different from the 16723 gauge guard?
The Parts Book lists 03562 and 16723 as two separate gauge-guard items on the 488/490 page (items 11 and 27); 03562 is the simpler guard, 16723 the bag-style guard with screws.
What does the gauge guard protect against?
Physical impact to the pressure gauge during transport and use of the wheeled unit.
Is the Amerex 03562-P001 a genuine Amerex part?
Yes. Amerex's Parts Book notice states genuine parts protect the UL listing and keep the warranty in effect.
Where is the 03562 listed in the Amerex Parts Book?
Printed page 16, item 11 (PDF page 18); it recurs on printed pages 20, 22, 24, 25 and 26 for the Z-Series, Halon 1211, Halotron I and SF 1230 wheeled families.
Which gauge does this guard protect on the 488 and 490?
The Parts Book lists the 05225-P 240 PSI gauge as item 12 on the same 488/490 parts list.
