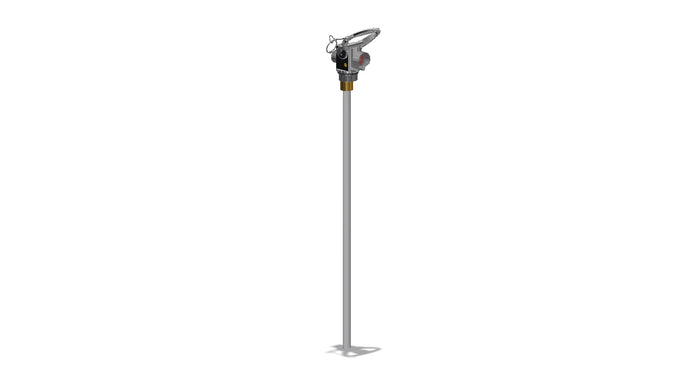

Amerex 05197 Brass Valve Assembly with Downtube for 125/150 lb Dry Chemical Wheeled
Amerex 05197 is the complete brass operating Valve Assembly with Downtube for the 488 and 490 125 lb wheeled stored-pressure dry chemical extinguishers (Parts Book p.16, item 1), and is listed again for the 125 lb Z-Series 690 and 759 (p.20, item 1). Full overview ↓
- Part no.
- 05197
- Pack
- 1 (sold individually)
- Fits
- 488, 490, 759
- Parts Book
- Page 18
- Free shipping (orders over $100)
- Returns per our refund policy.
Genuine Amerex part from an authorized Amerex distributor. Not a generic substitute.
Ordering parts for a service route?
Quotes for part lists, PO and tax-exempt orders, and parts not yet listed.
Which models does the Amerex 05197 fit?
Per the Amerex Parts Book · page 18| Fits | Extinguisher | UL rating | Capacity | Price | Link |
|---|---|---|---|---|---|
| Model 488 |  10488 Amerex 488 125 lb Wheeled ABC Fire Extinguisher (CG)Parts Book p.16 |
30A:240B:C | 125 lb (56.7 kg) | $5,737.00 | View |
| Model 490 |  10490 Amerex 490 125 lb Wheeled Purple K Fire ExtinguisherParts Book p.16 |
320B:C | 125 lb (56.7 kg) | $6,549.00 | View |
| Model 759 |  27065 Amerex 759 125 lb Wheeled Purple K Fire ExtinguisherParts Book p.20 |
120B:C | 125 lb (56.7 kg) | $12,112.00 | View |
Parts list for 125/150 lb. dry chemical stored pressure wheeled models
Fitment per the Amerex Parts Book. Check the part number against your unit’s nameplate before ordering.
What is the Amerex 05197?
Amerex 05197 is the complete brass operating Valve Assembly with Downtube for the 488 and 490 125 lb wheeled stored-pressure dry chemical extinguishers (Parts Book p.16, item 1), and is listed again for the 125 lb Z-Series 690 and 759 (p.20, item 1). The Parts Book notes that a replacement valve assembly already includes the valve body, gauge, gauge guard, cam, pressure valve and cap, lever, valve stem assembly, spring, and downtube/retainer assembly, so it is a complete rebuild-in-a-box for the discharge valve. It ships as a single assembly. Amerex replacement parts must be used to protect the UL listing and keep the warranty in effect.
Amerex 05197 specifications
| Part number | 05197 |
|---|---|
| Description | Valve Assembly Complete with Downtube |
| Parts Book page | 16 (PDF p. 18) |
| Diagram item | 1 |
| Pack quantity | 1 (sold individually) |
| Models | 488, 490, 690, 759 |
|---|
| Amerex item number | 05197 |
|---|
Part data as published by Amerex. Confirm against the current Parts Book revision before ordering for a unit in service.
Amerex 05197 documents
Official Amerex publications · PDF- Parts Book p. 18 Valve Assembly Complete with Downtube — parts list for 125/150 lb stored-pressure wheeled models 488, 490 (printed p.16)
- Parts Book p. 22 Listed as "Valve Assembly Complete with Downtube - 690, 759" (item 1) on the Z-Series parts list (printed p.20)
- Owner's Manual (488/490)
- Owner's Manual (Z-Series 756/758/759)
- Tech Tip Why genuine Amerex parts
- Warranty
Current Amerex publications, hosted on ShopAmerex so links do not break when Amerex reorganizes its site.
Other parts on Parts Book page 18
Parts list for 125/150 lb. dry chemical stored pressure wheeled models · All 22 parts| Part no. | Part | Pack | Price | Quantity and add to cart |
|---|---|---|---|---|
| 03501 | 1 (sold individually) | $600.00 | ||
| 03556-P006 | 6 per pack | $14.99 | ||
| 03562-P001 | 1 (sold individually) | $11.99 | ||
| 03678-P001 | 1 (sold individually) | $505.00 | ||
| 04938 | 1 (sold individually) | $110.00 | ||
| 05067-P001 | 1 (sold individually) | $17.99 | ||
| 05239-P012 | 12 per pack | $53.99 | ||
| 06059 | 1 (sold individually) | $132.00 |
Item numbers refer to the exploded view on the Parts Book page. Model-specific items are marked in the Amerex parts list; confirm before ordering.
Amerex 05197 questions
What does the Amerex 05197 valve assembly fit?
The 488 and 490 125 lb wheeled dry chemical extinguishers (Parts Book p.16) and the 125 lb Z-Series 690 and 759, which the Parts Book lists for the same valve assembly (p.20, item 1).
What is included in the Amerex 05197 complete valve assembly?
Per the Parts Book, a replacement valve assembly includes the valve body, gauge, gauge guard, cam, pressure valve and cap, lever, valve stem assembly, spring, and downtube/retainer assembly.
Is the valve body brass or aluminum?
Brass. The 488/490 owner's manual notes the operating valve, handle, gauge guard, fill cap, hose couplings and ball shutoff are brass or brass chrome-plated.
Is the Amerex 05197 a genuine Amerex part?
Yes. Amerex's Parts Book notice states that only genuine factory parts protect the UL listing, and substitute parts void the warranty.
Where is the 05197 listed in the Amerex Parts Book?
Printed page 16, item 1 (PDF page 18), and again on printed page 20, item 1, as "Valve Assembly Complete with Downtube - 690, 759".
What pressure do the 488 and 490 operate at?
240 psi. Amerex's owner's manual specifies recharging with dry nitrogen to 240 psi, and the Parts Book lists the 05225-P 240 PSI gauge for this valve.
